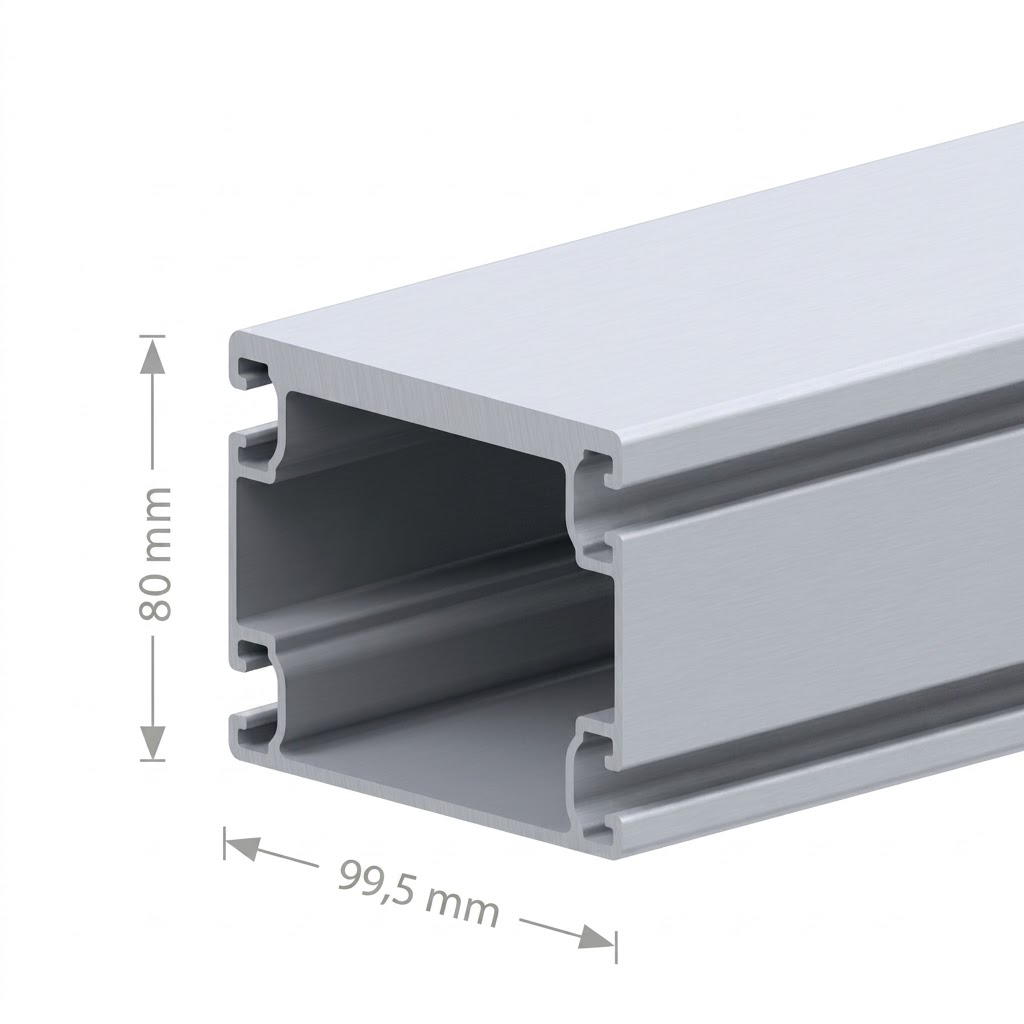

Description
Features

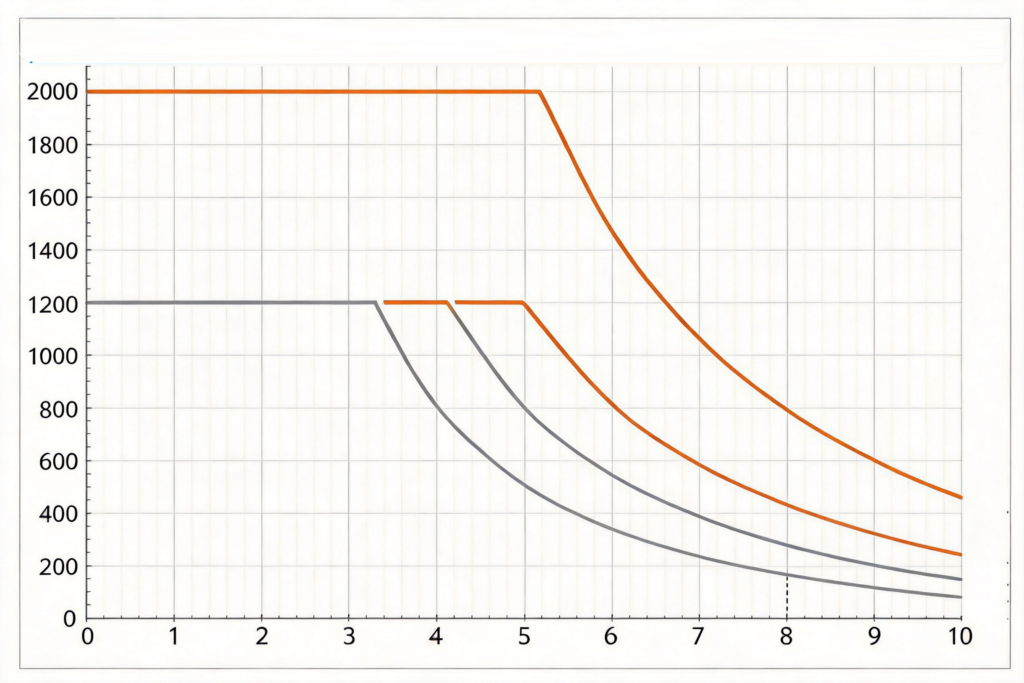

- Working loads up to 250 kg.
- High working loads with minimal construction height.
- Working loads of 250 kg with a construction height of only 105 mm and spans of 2,4 metres.
- Extremely light with ca. 5 kg/m.
- Profile length: 1 meter to 8 meters, customized
Technical Data
Material EN AW 6063 T66 aluminium, anodized
Weight 5 KG/Meter
Max. cutting tolerance +/- 0,50°
Moment of plane area [ly/lz] 253 cm4 / 221 cm4
Moment of resistance [Wy/Wz] 47 cm3 / 46 cm3
