Description
Features
- Working loads up to 1200 kg.

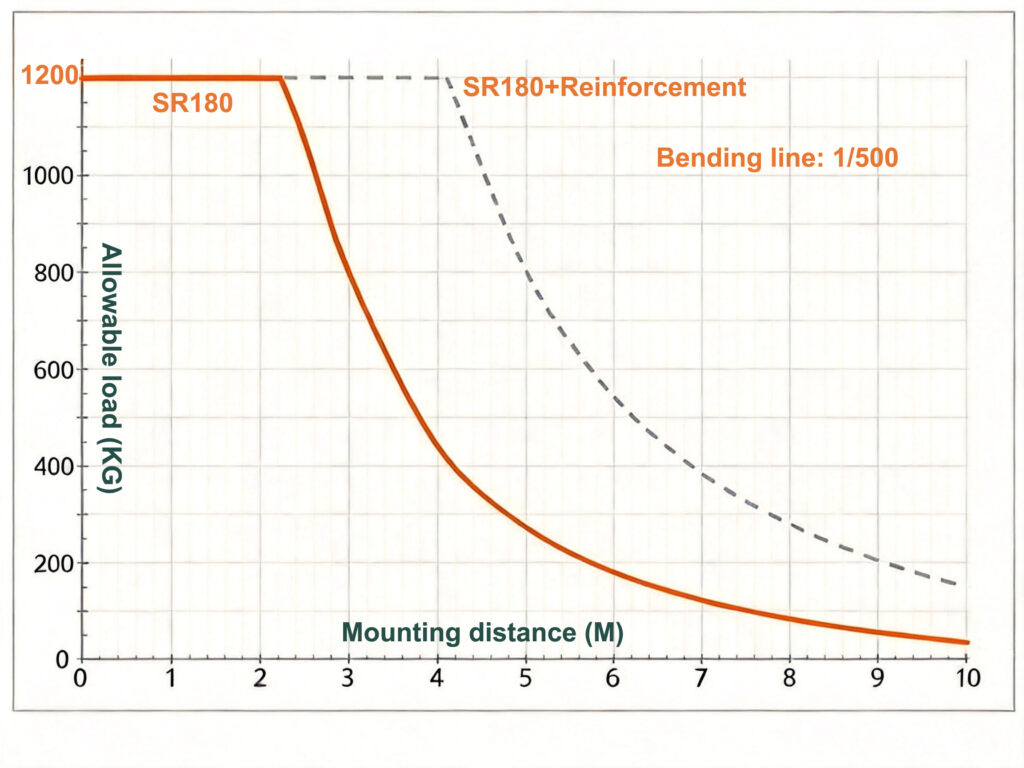

- Despite the low own weight of only 8,5 kg/m, the profile SR180 intakes loads of up to 600 kg per trolley. With that load it still covers 3,5 meters.
- Combine with a reinforcement profile to increase working load limits.
- For loads over 600 kg, 2 trolleys must be used.
- Profile length: 1 meter to 14 meters, customised
Technical Data

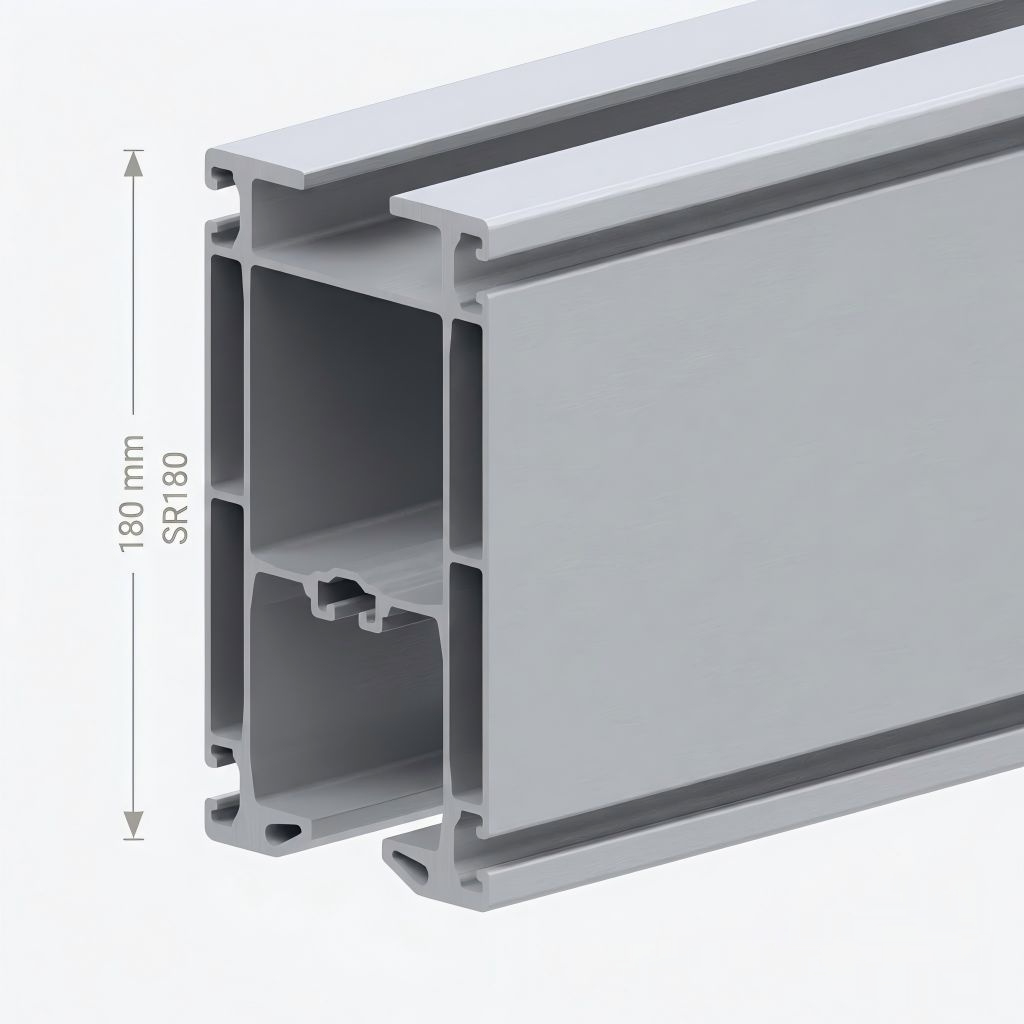

Material EN AW 6063 T66 aluminium anodised
Weight 8.5 KG/Meter
Max. cutting tolerance +/- 0,50°
Moment of plane area [ly/lz] 1229 cm4 / 440 cm4
Moment of resistance [Wy/Wz] 133 cm3 / 88 cm3
