Description
Features
- Working loads up to 1200 kg

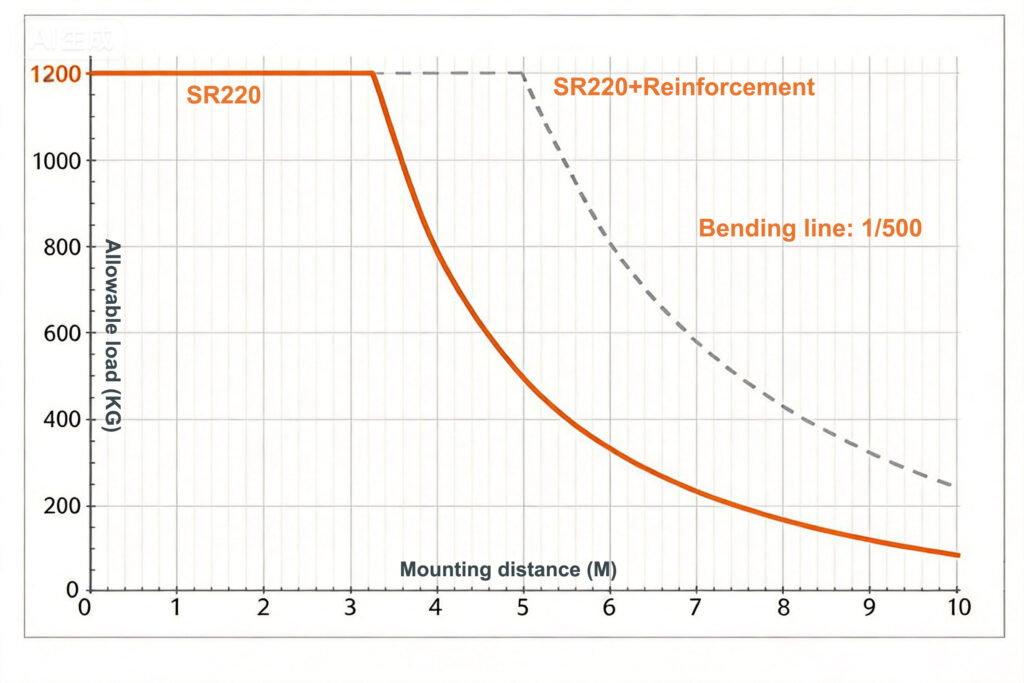

- In connection with the reinforcement profile, the profile SR220 can move 160 kg with a span of 14 meters.
- Combine with a reinforcement profile to increase working load limits.
- For loads over 600 kg, 2 trolleys must be used.
- Profile length: 1 meter to 14 meters,customisedd

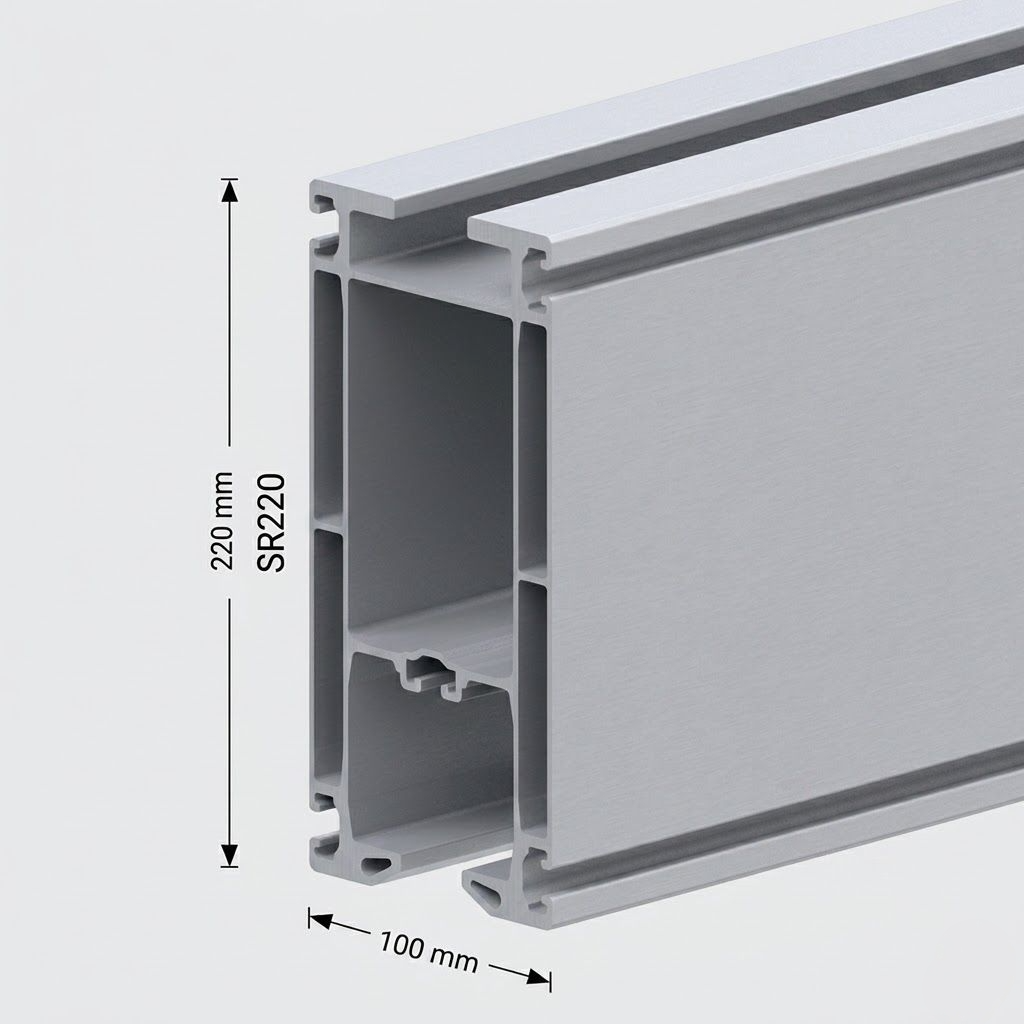

Technical Data
Material EN AW 6063 T66 aluminium anodised
Weight 10 KG/Meter
Max. cutting tolerance +/- 0,50°
Moment of plane area [ly/lz] 2195 cm4 / 518 cm4
Moment of resistance [Wy/Wz] 197 cm3 / 104 cm3
