Description
Features

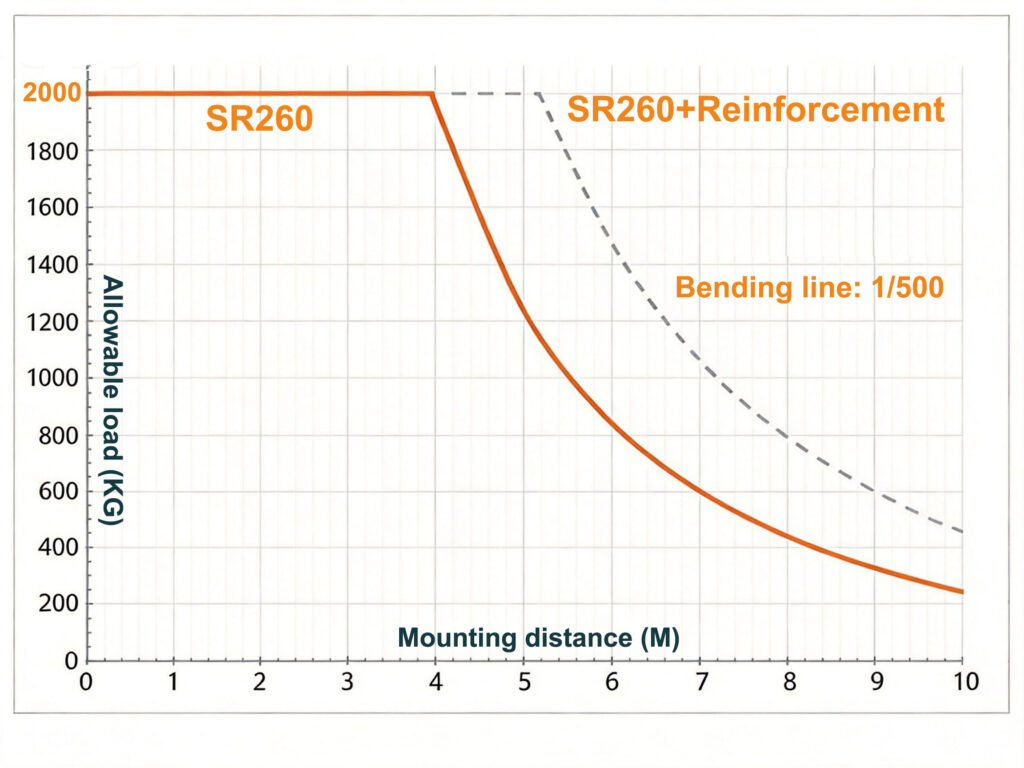

- Working loads up to 2000 kg
- Combine with a reinforcement profile to increase working load limits.
- For loads over 600 kg, 2 trolleys must be used. Higher loads must be received by 4 trolleys.

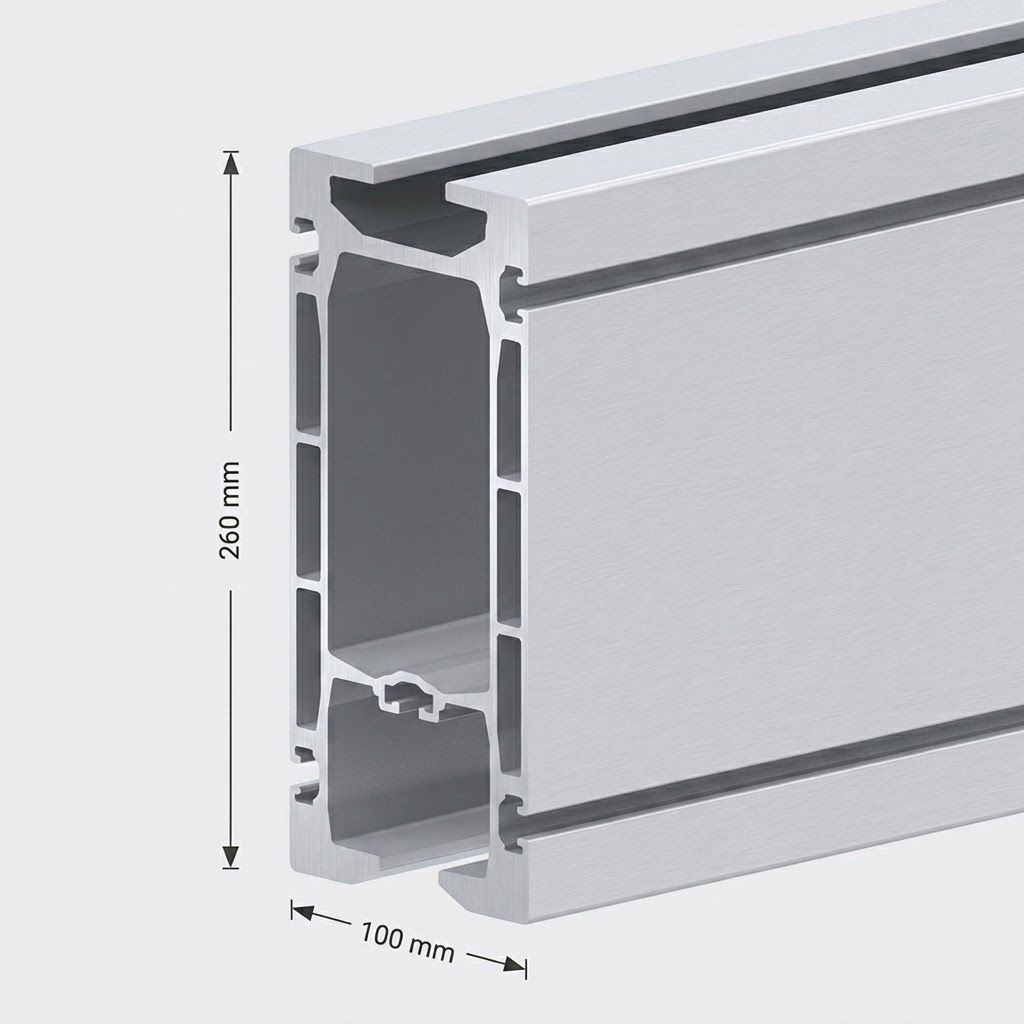

- Profile length: 1 meter to 11 meters, customized
Technical Data
Material EN AW 6063 T66 aluminium anodized
Weight 17.5 KG/Meter
Max. cutting tolerance +/- 0,50°
Moment of plane area [ly/lz] 5373 cm4 / 922 cm4
Moment of resistance [Wy/Wz] 402 cm3 / 184 cm3
